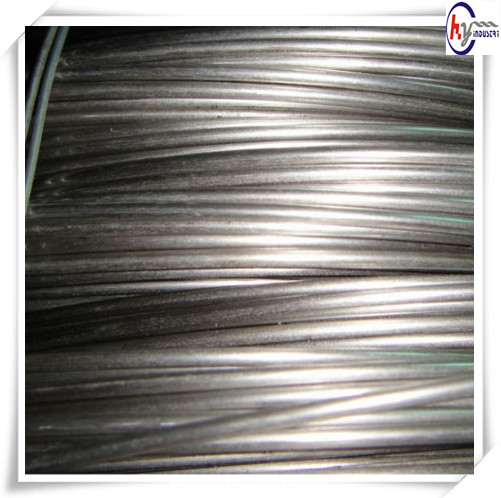

Heat Resistant Wire 0Cr27Al7Mo2 Fe-Cr-Al Alloy wire

\

Short Introduction:

HY 02772/0Cr27Al7Mo2 是铁铬铝合金丝.


  • FOB 价格: US $ 25 - 80 / Kilogram
  • 最小起订量: 300KG
  • 港口: 上海
  • 付款条款: L/C,T/T,30%预付款, 收到B/Lcopy后付尾款
  • Product Detail

    Product Tags

    HY 02772 相似牌号:0Cr27Al7Mo2

    HY 02772的主要性能如下表所示:

    主要性能 Grade property performance

    HY 02772

    主要成分 % Main Chemical Composition

    Cr

    26.5~27.8

    Al

    6~7

    Fe

    Balance

    Mn

    ≤0.2

    Nb

    ℃ Max contimnous service Temp. of element 元件最高使用温度

    1400

    Resistivity mm2/m 电阻率

    1.53±0.07

    电阻温度系数 10-5/℃ Temp coeff of resistance

    -1

    g/cm3 Density 密度

    7.1

    熔点 Melting point≈ ℃ (approxi)

    1520

    抗拉强度 Tensile strength N/mm2

    686~784

    延伸率% Elongation

    >12

    断面收缩率% Reducation of Area

    65~75

    硬度 Hardness(HB)

    200~260

    各类合金的常用规格
    Form Specification Supply Form Others
    Sheet Thickness:0.40-4.75mm,General Width:1000、1219、1500mm Whole Coil or piece of it Cold Annealed,Surface 2B、2E
    Plate Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D
    Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B、2E
    Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle、Square) Solution annealing,descaling
    Forged barΦ26-245mm,Length≤4000mm
    Weld tube Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm Base on your requirement
    Seamless Tube Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm Base on your requirement
    Wire Outer diameterΦ0.1-13mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Forged piece discs,rings,squares,blocks,slabs Base on your requirement Steel, Alloy
    Flangs All kinds of Flangs Base on your requirement Steel, Alloy
    Welding Material Coil wire Φ0.025mm-1.6mm Base on your requirement Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
    Straight WireΦ1.6mm-4.0mm
    Welding rodΦ1.2mm-4.0mm
    Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
    Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
