Nickel Alloy Hastelloy C-4 UNS N06455
HY HC-4相似牌号:
Hastelloy C-4 / UNS N06455 / AFNOR NC16D16M
HY HC-4的化学成分:
合金 |
% |
镍 |
铬 |
钼 |
铁 |
碳 |
锰 |
硅 |
钴 |
硫 |
磷 |
钛 |
C-4 |
最小 |
65 |
14 |
14 |
||||||||
最大 |
18 |
17 |
3.0 |
0.01 |
1.0 |
0.08 |
2.0 |
0.010 |
0.025 |
0.70 |
HY HC-4的物理性能
密度 |
8.64 g/cm3 |
熔点 |
1350-1400 ℃ |
HY HC-4在常温下合金的机械性能的最小值
合金 |
抗拉强度 |
屈服强度 |
延伸率 |
C-4 |
783 |
365 |
55 |
HY HC-4(Ni-Cr- Mo)在高温状态下具有优良的热稳定性和韧性,对于高温状态下的应力腐蚀裂纹和氧化性气氛具有良好的抵抗性。适合各类热的矿物酸、含氯介质、乙酸、乙酸酐、海水和盐水溶液等腐蚀性物质。
HY HC-4工作温度约: -200 至 +400°C
主要特征:组织稳定性好、焊接后可直接使用。
用途举例:湿氯、次氯酸、盐酸、氯化物装置。
生产标准:
板材;带材 |
SB 575/B 575(P= 43) |
钢坯;棒材 |
SB 574/B 574(P= 43) |
丝材;裸焊条 |
SFA 5.14/ A 5.14(ERNiCrMo-7)DIN 2.4611(SG-NiMo16Cr16Ti)(F= 43) |
无缝管 |
SB 622/B 622(P= 43) |
焊接管 |
SB 619/B 619;SB 626/B 626(P= 43) |
配件 |
SB 366/B 366(P= 43) |
各类合金的常用规格 | |||
Form | Specification | Supply Form | Others |
Sheet | Thickness:0.40-4.75mm,General Width:1000、1219、1500mm | Whole Coil or piece of it | Cold Annealed,Surface 2B、2E |
Plate | Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled) | Whole Coil or piece of it | Single hot rolling,Solid solution annealed state,Surface 1D |
Belt | Thickness:0.10-3.0mm,Width:50-500mm | Whole Coil or Specified size | Cold Annealed,Surface 2B、2E |
Bar & Rod | Rolled barΦ5-45mm,Length≤1500mm | Polished Bar(circle、Square) | Solution annealing,descaling |
Forged barΦ26-245mm,Length≤4000mm | |||

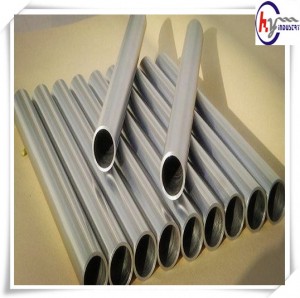

Weld tube | Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm | Base on your requirement | |
Seamless Tube | Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm | Base on your requirement | |

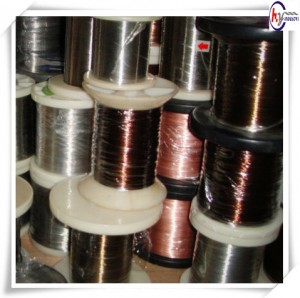

Wire | Outer diameterΦ0.1-13mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
Forged piece | discs,rings,squares,blocks,slabs | Base on your requirement | Steel, Alloy |
Flangs | All kinds of Flangs | Base on your requirement | Steel, Alloy |
Welding Material | Coil wire Φ0.025mm-1.6mm | Base on your requirement | Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France. |
Straight WireΦ1.6mm-4.0mm | |||
Welding rodΦ1.2mm-4.0mm | |||
Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
