Iron Alloy Precision Alloy Invar 36 UNS K93600
\
HY I36 相似牌号：GB 4J36 / UNS K93600 / AISI/ASTM Invar36/ W.Nr.1.3912/ Pernifer 36
化学成分:
|
合金 |
% |
镍 |
铁 |
碳 |
锰 |
硅 |
磷 |
硫 |
|
HY I36 |
最小 |
35 |
余量 |
0.20 |
||||
|
最大 |
37 |
0.05 |
0.60 |
0.30 |
0.020 |
0.020 |
物理性能：
密度：8.1 g/cm3
熔点：1430 °C
常温下合金的机械性能：
|
Alloy state |
Tensile strength Rm N/mm2 |
Yield strength RP0.2N/mm2 |
Elongation A5 % |
Brinell hardness HB |
|
HY I36 |
490 |
240 |
42 |
≤200 |
合金特性：
牌号：HY I36/ 4J36(Invar NiIvar UniSPan 36)名称：因瓦合金
低膨胀合金HY I36 在-60度–80 度 大气温度变化内有较低的膨胀系数和良好的可塑性，用于制作在气温变化范围内尺寸近于恒定的元件，广泛用于无线电，精密仪表,仪器和其他行业，做标准量具，微波谐振腔，双金属波动层等。

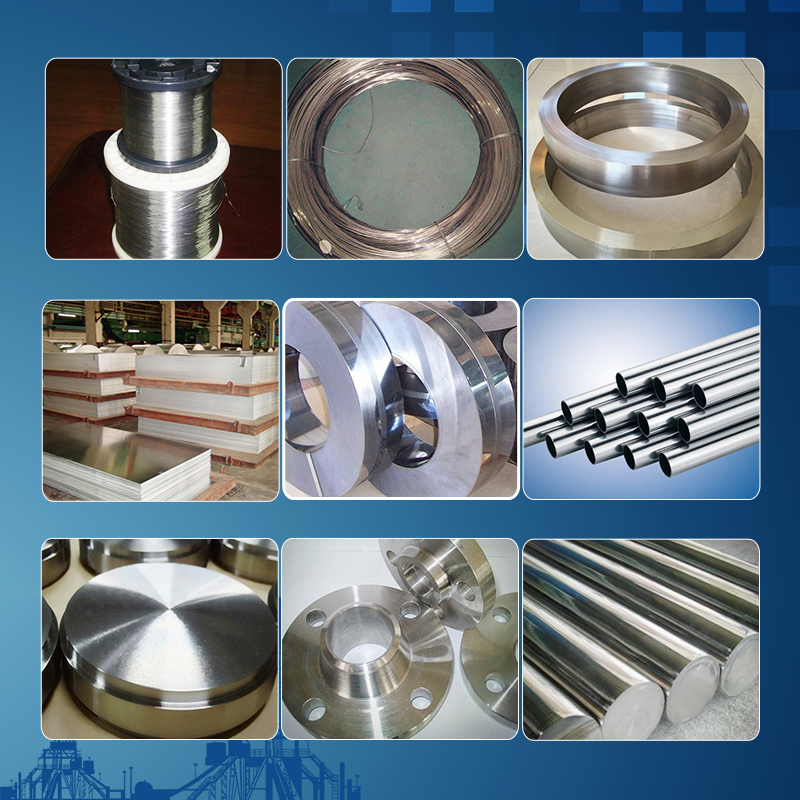

| Form | Specification | Supply Form | Others |
| Sheet | Thickness：0.40-4.75mm，General Width：1000、1219、1500mm | Whole Coil or piece of it | Cold Annealed，Surface 2B、2E |
| Plate | Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） | Whole Coil or piece of it | Single hot rolling，Solid solution annealed state，Surface 1D |
| Belt | Thickness：0.10-3.0mm，Width：50-500mm | Whole Coil or Specified size | Cold Annealed，Surface 2B、2E |
| Bar & Rod | Rolled barΦ5-45mm，Length≤1500mm | Polished Bar（circle、Square） | Solution annealing,descaling |
| Forged barΦ26-245mm，Length≤4000mm | |||
| Weld tube | Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm | Base on your requirement | |
| Seamless Tube | Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm | Base on your requirement | |
| Wire | Outer diameterΦ0.1-13mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Forged piece | discs,rings,squares,blocks,slabs | Base on your requirement | Steel, Alloy |
| Flangs | All kinds of Flangs | Base on your requirement | Steel, Alloy |
| Welding Material | Coil wire Φ0.025mm-1.6mm | Base on your requirement | Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
| Straight WireΦ1.6mm-4.0mm | |||
| Welding rodΦ1.2mm-4.0mm | |||
| Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
各类合金的常用规格
