Nickel Alloy Inconel 617 UNS N06617
HY 617 相似牌号:
Inconel 617 / UNS N07617 / SEW VDIUV W.Nr.2.4663 NiCr23Co12Mo / AFNOR NC22KDA
HY 617的化学成分:
合金 |
% |
镍 |
铬 |
铁 |
碳 |
锰 |
硅 |
钼 |
钴 |
铝 |
钛 |
磷 |
硫 |
617 |
最小 |
20 |
0.05 |
8 |
10.0 |
0.6 |
0.2 |
||||||
最大 |
余量 |
23 |
2.0 |
0.1 |
0.7 |
0.7 |
10.0 |
13.0 |
1.5 |
0.6 |
0.012 |
0.008 |
HY 617的物理性能:
密度 |
8.4 g/cm3 |
熔点 |
1330-1380℃ |
HY 617的特点:
●在高达1100℃高温下具有很好的瞬时和长期机械性能
●在1100℃时具有高抗氧化性
●在1100℃时具有高抗碳化性
●良好的焊接性能
HY 617的金相结构:
617合金为为面心立方晶格结构,具有良好的晶相稳定性。通过固液硬化具有了优秀的高温强度,合金没有时效硬化。
HY 617的耐腐蚀和耐热性能:
617合金在热腐蚀领域中如硫化环境,尤其是高达1100℃循环的氧化和碳化环境中具有极好的耐腐蚀能力。这些耐腐蚀性加上出色的机械性能,使这种合金特别适用于高温领域。另外,较高的铬、铝、钼含量使合金在大多数侵蚀介质中具有号的抗腐蚀性。
HY 617适用于高温和极高机械应力的场合。推荐使用温度不超过1000℃。同时Inconel 617适用于薄壁结构部件加工等需要减轻重量的场合。
1.工业和航空汽轮机部件
2.空气加热器
3.马弗罐和辐射馆
4.高温热交换器、阀和弹簧
5.高温气体冷却核反应堆,如核反应堆高温部件-氦/氦介质热交换器
6.化工设备
7.石化工业中的螺旋管和管道
生产标准:
棒材;丝材;锻件 |
ASTM B 166/ASME SB 166/ASTM B 564/ASME SB 564/SAE AMS 5887/VdTÜV 485/ISO 9724/DIN 17752/DIN 17753/DIN 17754 |
板材;带材 |
ASTM B 168/ASME SB 168/SAE AMS 5888/SAE AMS 5889/VdTÜV 485/ISO 6208/DIN 17750 |
管材 |
VdTÜV 485/ISO 6207/ASTM B 546/ASME SB 546/DIN 17751 |

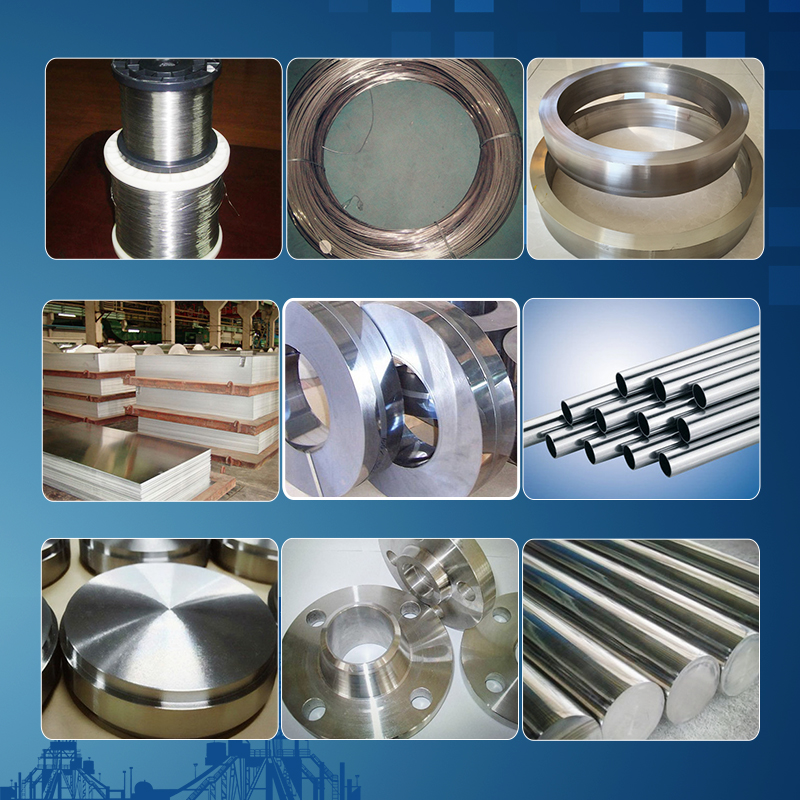

各类合金的常用规格
Form | Specification | Supply Form | Others |
Sheet | Thickness:0.40-4.75mm,General Width:1000、1219、1500mm | Whole Coil or piece of it | Cold Annealed,Surface 2B、2E |
Plate | Thickness:4.76-60mm,Width:1500、2000、2500mm,Length:3000、6000、8000、8500mm(Under 10mm plate can be coiled) | Whole Coil or piece of it | Single hot rolling,Solid solution annealed state,Surface 1D |
Belt | Thickness:0.10-3.0mm,Width:50-500mm | Whole Coil or Specified size | Cold Annealed,Surface 2B、2E |
Bar & Rod | Rolled barΦ5-45mm,Length≤1500mm | Polished Bar(circle、Square) | Solution annealing,descaling |
Forged barΦ26-245mm,Length≤4000mm | |||
Weld tube | Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm | Base on your requirement | |
Seamless Tube | Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm | Base on your requirement | |
Wire | Outer diameterΦ0.1-13mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
Forged piece | discs,rings,squares,blocks,slabs | Base on your requirement | Steel, Alloy |
Flangs | All kinds of Flangs | Base on your requirement | Steel, Alloy |
Welding Material | Coil wire Φ0.025mm-1.6mm | Base on your requirement | Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France. |
Straight WireΦ1.6mm-4.0mm | |||
Welding rodΦ1.2mm-4.0mm | |||
Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
