Nickel Alloy Inconel 690 UNS N06690
HY 690 相似牌号：
INCONEL 690 / UNS N06690 / W. Nr. 2.4642
HY 690的化学成分
|
牌号 Type |
主要成分 % Main Chemical Composition % |
|||||||
|
Ni |
Cr |
Fe |
Cu |
C |
Si |
Mn |
S |
|
|
HY 690 |
余量 Rest |
27.0～31.0 |
7.0～11.0 |
≤0.05 |
≤0.05 |
≤0.5 |
≤0.5 |
≤0.015 |
HY 690的物理性能
|
密度 |
熔点 |
硬度 |
|
|
8.2 |
1340～1377 |
HB240 |
HY 690在常温下的机械性能
|
Condition |
Tensile Strength |
Yield strength |
Elongation |
|
A 5 % |
|||
|
Solution |
690～738 |
334～372 |
44～50 |
HY 690的特点
HY 690合金是具有优异抗多种水性介质和高温气氛侵蚀能力的镍基变形合金。它还具有高的强度，良好的稳定性和优良的加工特性。
生产标准：
|
棒材；丝材；锻件 |
ASTM B166; ASME SB 166, ASTM B 564; ASME SB 564, ASME Code Case N-525, ISO 9723, MIL-DTL-24801 |
|
无缝管 |
ASTM B 163; ASME SB 163, ASTM B 167; ASME SB 167, ASTM B 829; ASME SB 829, ASME Code Cases 2083, N- 20, N-525, ISO 6207, MIL- DTL-24803 |
|
板材；带材 |
ASTM B168; ASME SB 168; ASME N-525, ISO 6208, MIL-DTL-24802 |
|
焊接产品 |
INCONEL Filler Metal 52 – AWS A5.14 / ERNiCrFe-7; INCONEL Welding Electrode 152 – AWS A5.11 / ENiCrFe-7 |
各类合金的常用规格
| Form | Specification | Supply Form | Others |
| Sheet | Thickness：0.40-4.75mm，General Width：1000、1219、1500mm | Whole Coil or piece of it | Cold Annealed，Surface 2B、2E |
| Plate | Thickness：4.76-60mm，Width：1500、2000、2500mm，Length：3000、6000、8000、8500mm（Under 10mm plate can be coiled） | Whole Coil or piece of it | Single hot rolling，Solid solution annealed state，Surface 1D |
| Belt | Thickness：0.10-3.0mm，Width：50-500mm | Whole Coil or Specified size | Cold Annealed，Surface 2B、2E |

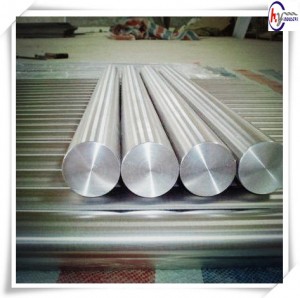

| Bar & Rod | Rolled barΦ5-45mm，Length≤1500mm | Polished Bar（circle、Square） | Solution annealing,descaling |
| Forged barΦ26-245mm，Length≤4000mm | |||

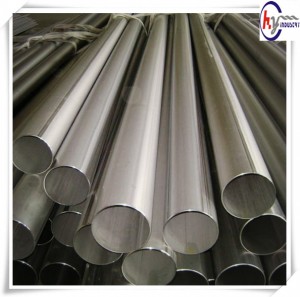

| Weld tube | Outer diameterΦ4.76-135mm，Wall Thickness0.25-4.00mm，Length：≤35000 mm | Base on your requirement | |
| Seamless Tube | Outer diameterΦ3-114mm，Wall Thickness0.2-4.5mm | Base on your requirement | |
| Wire | Outer diameterΦ0.1-13mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Forged piece | discs,rings,squares,blocks,slabs | Base on your requirement | Steel, Alloy |
| Flangs | All kinds of Flangs | Base on your requirement | Steel, Alloy |
| Welding Material | Coil wire Φ0.025mm-1.6mm | Base on your requirement | Certificate of Origin：America, Sweden, Britain, Germany, Austria, Italy, France. |
| Straight WireΦ1.6mm-4.0mm | |||
| Welding rodΦ1.2mm-4.0mm | |||
| Tube | Elbow, three links, four links, different diameter size | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
| Explosive bonded laminate | Raw Sheet Thickness≥2mm | Base on your requirement | Ni & Ni alloy, Ti & Ti alloy |
